NDES Configuration & Troubleshooting: Complete Guide for SCEP Enrollment

NDES (Network Device Enrollment Service) is Microsoft’s implementation of SCEP — the protocol that lets routers, switches, firewalls, MDM-managed devices, and IoT endpoints request certificates from your AD CS infrastructure without human intervention. When it works, it’s invisible. When it breaks, you get a flood of “HTTP 403” errors and devices falling off the network.

This guide covers the full NDES lifecycle: installation, configuration, template setup, IIS hardening, and — most importantly — fixing the errors that will inevitably appear in production.

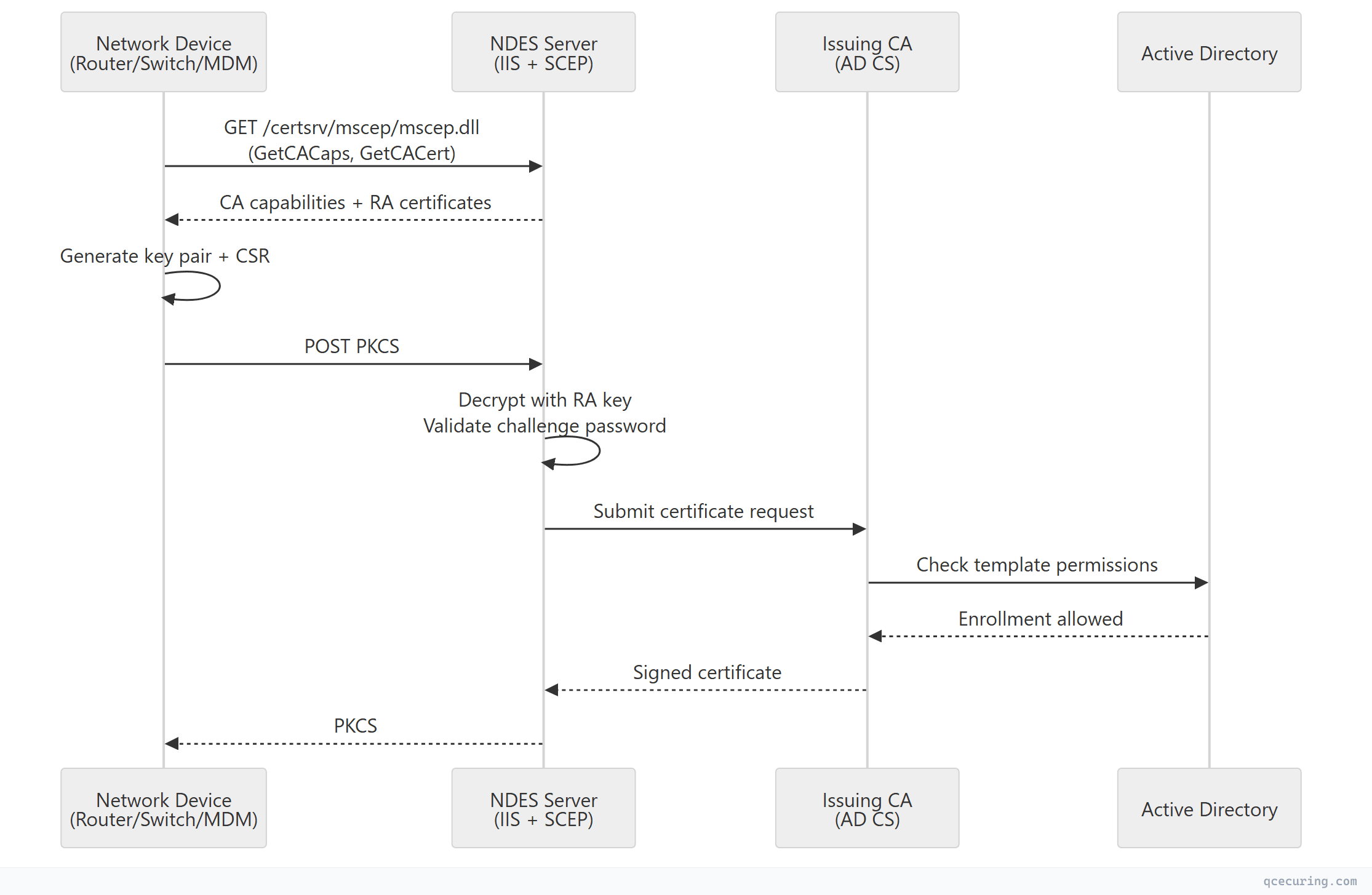

How NDES Works

NDES sits between your network devices and your Certificate Authority. Devices speak SCEP (Simple Certificate Enrollment Protocol) over HTTP/HTTPS, and NDES translates those requests into certificate enrollment operations against AD CS.

Key components:

Prerequisites

Before installing NDES, verify:

Service Account Setup

Create a dedicated domain account for NDES:

# Create NDES service account
New-ADUser -Name "svc-ndes" `
  -SamAccountName "svc-ndes" `
  -UserPrincipalName "svc-ndes@contoso.com" `
  -Path "OU=Service Accounts,DC=contoso,DC=com" `
  -AccountPassword (ConvertTo-SecureString "P@ssw0rd!Complex" -AsPlainText -Force) `
  -Enabled $true `
  -PasswordNeverExpires $true `
  -CannotChangePassword $true

# Add to IIS_IUSRS group on the NDES server (run on NDES server)
Add-LocalGroupMember -Group "IIS_IUSRS" -Member "CONTOSO\svc-ndes"

Required permissions for the service account:

1. Request Certificates permission on the CA
2. Read and Enroll on the certificate template
3. Local logon right on the NDES server
4. Member of IIS_IUSRS local group on NDES server

Set the CA permission:

# On the CA server — grant Request Certificates permission
certutil -setreg ca\InterfaceFlags +IF_ENFORCEENCRYPTICERTREQUEST
# Then in certsrv.msc → Right-click CA → Properties → Security
# Add svc-ndes → Grant "Request Certificates"

Installation

Install the NDES Role

# Install NDES role with management tools
Install-WindowsFeature -Name ADCS-Device-Enrollment -IncludeManagementTools

# Install IIS management tools (useful for troubleshooting)
Install-WindowsFeature -Name Web-Mgmt-Console, Web-Mgmt-Tools

Configure NDES Post-Installation

# Configure NDES with the service account
Install-AdcsNetworkDeviceEnrollmentService `
  -ServiceAccountName "CONTOSO\svc-ndes" `
  -ServiceAccountPassword (ConvertTo-SecureString "P@ssw0rd!Complex" -AsPlainText -Force) `
  -CAConfig "CA-SERVER\Contoso-Issuing-CA" `
  -RAName "NDES-RA" `
  -RACountry "US" `
  -RACompany "Contoso" `
  -SigningProviderName "Microsoft Strong Cryptographic Provider" `
  -SigningKeyLength 2048 `
  -EncryptionProviderName "Microsoft Strong Cryptographic Provider" `
  -EncryptionKeyLength 2048

After installation, verify the SCEP endpoint responds:

# Test NDES endpoint
Invoke-WebRequest -Uri "http://ndes-server.contoso.com/certsrv/mscep/mscep.dll" -Method GET
# Should return HTTP 200 with SCEP capabilities

Certificate Template Configuration

NDES uses a certificate template to determine what certificates it issues. The default template is “IPSec (Offline request)” — which is almost never what you want.

Create a Custom NDES Template

1. Open Certificate Templates Console (certtmpl.msc)
2. Duplicate the Computer or Web Server template
3. Configure:

Publish the Template

# Publish template to the CA
Add-CATemplate -Name "NDES-Device-Certificate" -Force

# Verify it's published
Get-CATemplate | Where-Object { $_.Name -eq "NDES-Device-Certificate" }

Configure NDES to Use Your Template

Edit the registry on the NDES server:

# Set the certificate template NDES uses
Set-ItemProperty -Path "HKLM:\SOFTWARE\Microsoft\Cryptography\MSCEP" `
  -Name "EncryptionTemplate" -Value "NDES-Device-Certificate"
Set-ItemProperty -Path "HKLM:\SOFTWARE\Microsoft\Cryptography\MSCEP" `
  -Name "GeneralPurposeTemplate" -Value "NDES-Device-Certificate"
Set-ItemProperty -Path "HKLM:\SOFTWARE\Microsoft\Cryptography\MSCEP" `
  -Name "SignatureTemplate" -Value "NDES-Device-Certificate"

# Restart IIS to apply
iisreset /restart

All three registry values (EncryptionTemplate, GeneralPurposeTemplate, SignatureTemplate) must be set. If any one points to a non-existent or unpublished template, NDES silently fails.

Challenge Password Configuration

NDES uses one-time challenge passwords to authorize enrollment requests. By default, each password is valid for 60 minutes and can be used once.

Password Behavior Options

# Registry path for NDES password settings
$regPath = "HKLM:\SOFTWARE\Microsoft\Cryptography\MSCEP"

# Option 1: Enforce passwords (default — most secure)
Set-ItemProperty -Path $regPath -Name "EnforcePassword" -Value 1

# Option 2: Disable password requirement (for MDM/Intune scenarios)
# WARNING: Any device can enroll without authorization
Set-ItemProperty -Path $regPath -Name "EnforcePassword" -Value 0

# Set password cache duration (minutes) — default 60
Set-ItemProperty -Path $regPath -Name "PasswordMax" -Value 60

# Set max number of cached passwords — default 5
Set-ItemProperty -Path $regPath -Name "PasswordCacheMax" -Value 5

# Restart after changes
iisreset /restart

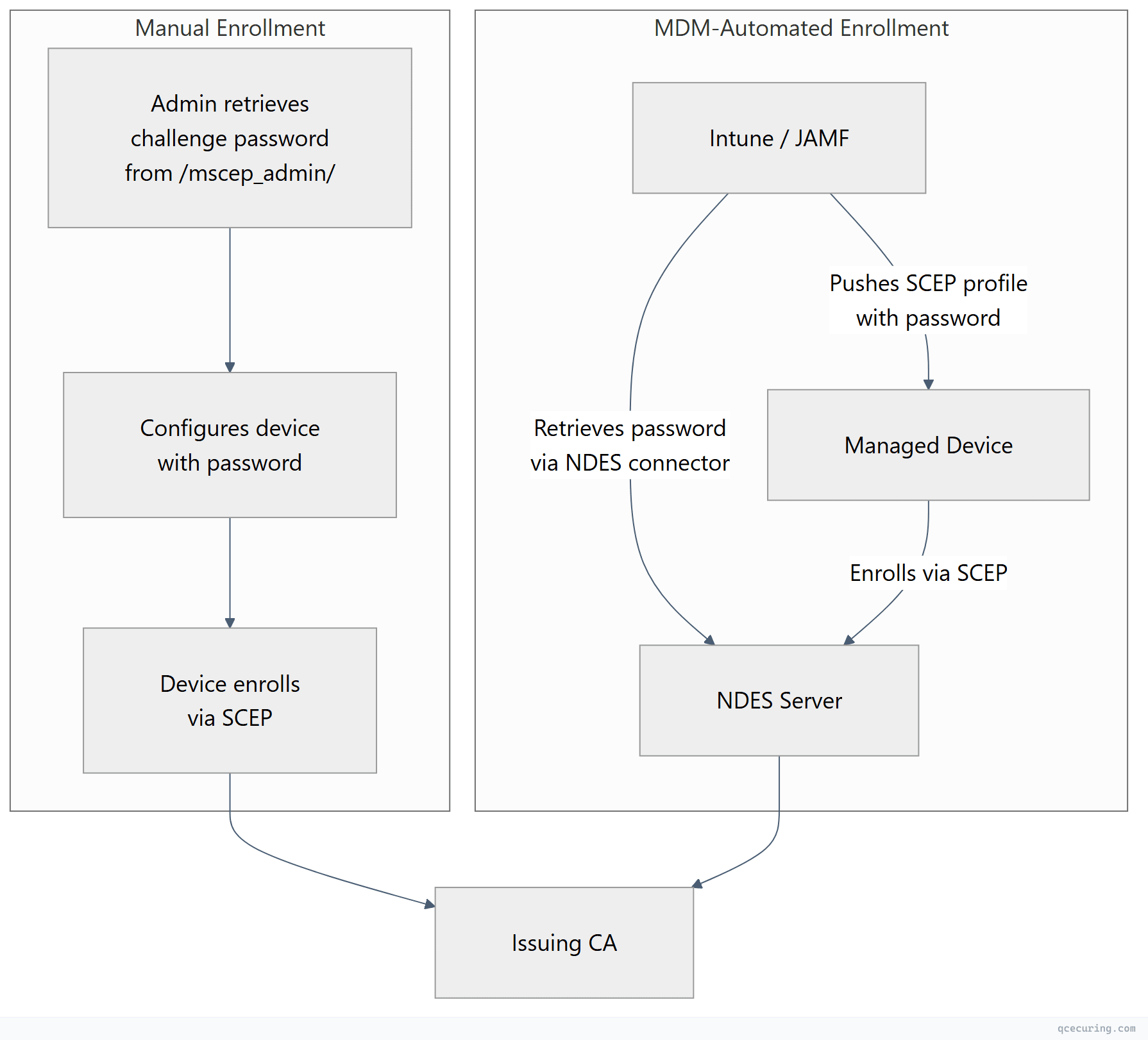

Retrieving Challenge Passwords

Administrators retrieve passwords from the NDES web page:

http://ndes-server.contoso.com/certsrv/mscep_admin/

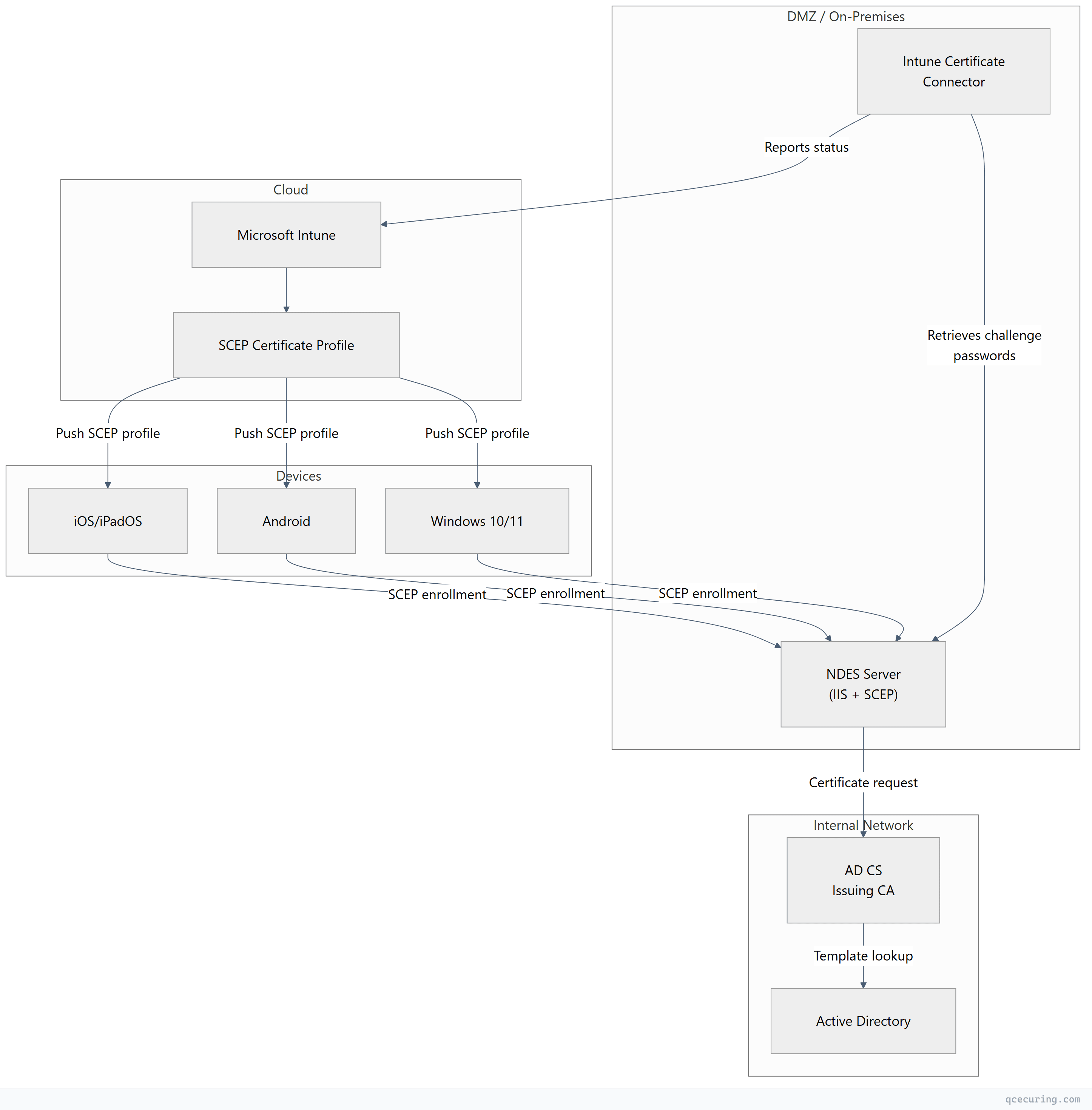

For automated enrollment (Intune, JAMF), the MDM platform retrieves challenge passwords via the NDES admin endpoint using a service account with appropriate permissions.

IIS Configuration and Hardening

Enable HTTPS on the NDES Endpoint

NDES installs with HTTP by default. For production, bind an SSL certificate:

# Request a web server certificate for the NDES server
# (Use your internal CA or a template with Server Authentication EKU)

# Bind SSL to the Default Web Site
New-WebBinding -Name "Default Web Site" -Protocol https -Port 443

# Assign the certificate (get thumbprint first)
$cert = Get-ChildItem Cert:\LocalMachine\My | Where-Object { $_.Subject -like "*ndes*" }
$binding = Get-WebBinding -Name "Default Web Site" -Protocol https
$binding.AddSslCertificate($cert.Thumbprint, "My")

Request Size Limits

SCEP requests can be large (especially with long certificate chains). Increase IIS limits:

# Increase max request size for SCEP (default 30MB is usually fine)
Set-WebConfigurationProperty -Filter "/system.webServer/security/requestFiltering/requestLimits" `
  -PSPath "IIS:\Sites\Default Web Site\certsrv\mscep" `
  -Name "maxAllowedContentLength" -Value 52428800

# Increase URL length limit
Set-WebConfigurationProperty -Filter "/system.webServer/security/requestFiltering/requestLimits" `
  -PSPath "IIS:\Sites\Default Web Site\certsrv\mscep" `
  -Name "maxUrl" -Value 65534

Application Pool Settings

# Set the NDES app pool to use the service account
Set-ItemProperty "IIS:\AppPools\SCEP" -Name processModel.identityType -Value SpecificUser
Set-ItemProperty "IIS:\AppPools\SCEP" -Name processModel.userName -Value "CONTOSO\svc-ndes"
Set-ItemProperty "IIS:\AppPools\SCEP" -Name processModel.password -Value "P@ssw0rd!Complex"

# Enable 32-bit applications (required for NDES on 64-bit)
Set-ItemProperty "IIS:\AppPools\SCEP" -Name enable32BitAppOnWin64 -Value $true

# Restart the app pool
Restart-WebAppPool -Name "SCEP"

# Verify the service account has Request Certificates on the CA
certutil -getreg ca\Security
# Look for the NDES service account with "Request Certificates" permission

# Fix: Add permission via certsrv.msc → CA Properties → Security

# Check which templates are published on the CA
certutil -CATemplates

# Verify the template name matches registry exactly (case-sensitive!)
Get-ItemProperty "HKLM:\SOFTWARE\Microsoft\Cryptography\MSCEP" | Select-Object *Template*

# Check RA certificates in the NDES server's Local Machine store
Get-ChildItem Cert:\LocalMachine\My | Where-Object {
  $_.Subject -like "*CEP Encryption*" -or $_.Subject -like "*Exchange Enrollment*"
} | Select-Object Subject, NotAfter, Thumbprint

# If expired, re-run NDES configuration or manually renew

# Check NDES event log for password-related errors
Get-WinEvent -LogName "Application" -FilterXPath "*[System[Provider[@Name='NetworkDeviceEnrollmentService']]]" |
  Select-Object -First 20 TimeCreated, Message

# Re-register the SCEP ISAPI DLL
regsvr32 /s "C:\Windows\System32\certsrv\mscep\mscep.dll"
iisreset /restart

# Check which provider NDES is configured to use
Get-ItemProperty "HKLM:\SOFTWARE\Microsoft\Cryptography\MSCEP" |
  Select-Object SigningProviderName, EncryptionProviderName

# If using a provider that's not available, reconfigure:
Set-ItemProperty -Path "HKLM:\SOFTWARE\Microsoft\Cryptography\MSCEP" `
  -Name "SigningProviderName" -Value "Microsoft Strong Cryptographic Provider"

# Check if the SCEP app pool is running
Get-WebAppPoolState -Name "SCEP"

# Check event log for app pool crashes
Get-WinEvent -LogName "System" -FilterXPath "*[System[Provider[@Name='WAS']]]" |
  Where-Object { $_.Message -like "*SCEP*" } | Select-Object -First 5

# Test connectivity to the CA
certutil -ping -config "CA-SERVER\Contoso-Issuing-CA"

# Check RPC connectivity
Test-NetConnection -ComputerName CA-SERVER -Port 135

# Verify the CA is running
certutil -isvalid

# List templates the CA supports
certutil -CATemplates | findstr /i "NDES"

# If missing, publish the template
Add-CATemplate -Name "NDES-Device-Certificate" -Force

# Verify template version compatibility
# V2/V3 templates require Enterprise CA (not Standalone)
certutil -template "NDES-Device-Certificate" | findstr "Schema Version"

# Verify NDES URL is accessible from the device's network
Test-NetConnection -ComputerName ndes-server.contoso.com -Port 443

# Check if the SCEP endpoint responds
Invoke-WebRequest "https://ndes-server.contoso.com/certsrv/mscep/mscep.dll?operation=GetCACaps" `
  -UseBasicParsing

# Expected response: plain text with capabilities like:
# POSTPKIOperation
# SHA-512
# SHA-256
# AES
# SCEPStandard
# Renewal

# Check RA certificate expiry
Get-ChildItem Cert:\LocalMachine\My | Where-Object {
  $_.EnhancedKeyUsageList.FriendlyName -contains "Certificate Request Agent"
} | Format-Table Subject, NotAfter, Thumbprint

# Manual RA renewal: remove old RA certs and reconfigure NDES
# Step 1: Note the old thumbprints
# Step 2: Remove from store
# Step 3: Re-run Install-AdcsNetworkDeviceEnrollmentService with -Force

# NDES logs to Application log under source "NetworkDeviceEnrollmentService"
# Key Event IDs:
#   1 = Service started
#   2 = Certificate issued successfully
#   4 = Request denied (check details for reason)
#   6 = Challenge password validation failed
#  16 = RA certificate problem

# Create a scheduled task to alert on errors
$query = @"
<QueryList>
  <Query Id="0" Path="Application">
    <Select Path="Application">
      *[System[Provider[@Name='NetworkDeviceEnrollmentService'] and (Level=2 or Level=3)]]
    </Select>
  </Query>
</QueryList>
"@

Get-WinEvent -FilterXml $query | Select-Object TimeCreated, Id, Message

# ndes-health-check.ps1 — Run as scheduled task every 15 minutes

$ndesUrl = "https://ndes-server.contoso.com/certsrv/mscep/mscep.dll?operation=GetCACaps"
$alertEmail = "pki-team@contoso.com"

try {
    $response = Invoke-WebRequest -Uri $ndesUrl -UseBasicParsing -TimeoutSec 10
    if ($response.StatusCode -ne 200) {
        throw "NDES returned HTTP $($response.StatusCode)"
    }
    if ($response.Content -notmatch "POSTPKIOperation") {
        throw "NDES response missing expected capabilities"
    }
    Write-Output "NDES healthy: $(Get-Date)"
}
catch {
    $body = "NDES health check failed at $(Get-Date): $($_.Exception.Message)"
    Send-MailMessage -To $alertEmail -From "monitoring@contoso.com" `
      -Subject "ALERT: NDES Unhealthy" -Body $body -SmtpServer "smtp.contoso.com"
}

# Check RA certificate expiry (warn 30 days before)
$raCerts = Get-ChildItem Cert:\LocalMachine\My | Where-Object {
    $_.EnhancedKeyUsageList.FriendlyName -contains "Certificate Request Agent"
}
foreach ($cert in $raCerts) {
    $daysLeft = ($cert.NotAfter - (Get-Date)).Days
    if ($daysLeft -lt 30) {
        $body = "NDES RA certificate '$($cert.Subject)' expires in $daysLeft days"
        Send-MailMessage -To $alertEmail -From "monitoring@contoso.com" `
          -Subject "WARNING: NDES RA Certificate Expiring" -Body $body -SmtpServer "smtp.contoso.com"
    }
}
