Certificate Management Solutions for Hospitals & Healthcare Organizations

A hospital’s certificate infrastructure is uniquely complex. You have EHR systems (Epic, Cerner, MEDITECH) that need TLS for HL7 FHIR APIs. Medical devices — infusion pumps, imaging systems, patient monitors — that authenticate via certificates but can’t be easily updated. Patient portals handling PHI over HTTPS. Telehealth platforms with mTLS between providers. And all of it falls under HIPAA’s encryption requirements with audit trails that must survive a compliance investigation.

When a certificate expires on a patient portal, it’s not just a website outage — it’s a potential HIPAA violation and a disruption to patient care. When a medical device’s certificate expires, it may disconnect from the network entirely, with no remote renewal mechanism.

The Healthcare Certificate Landscape

Certificate Count by Hospital Size

HIPAA Encryption Requirements

HIPAA’s Security Rule (§164.312) classifies encryption as an “addressable” implementation specification — meaning you must implement it or document why an equivalent alternative is used. In practice, every healthcare organization encrypts PHI in transit.

What HIPAA Requires for Certificates

Minimum TLS Configuration for HIPAA

# HIPAA-compliant TLS configuration (references NIST SP 800-52)
ssl_protocols TLSv1.2 TLSv1.3;
ssl_ciphers 'ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256';
ssl_prefer_server_ciphers on;

# Certificate must use:
# - RSA 2048+ or ECDSA P-256+
# - SHA-256+ signature algorithm
# - Valid chain to trusted CA
# - Matching SAN for the service hostname

Medical Device Certificate Challenges

Medical devices (IoMT — Internet of Medical Things) present unique certificate management problems:

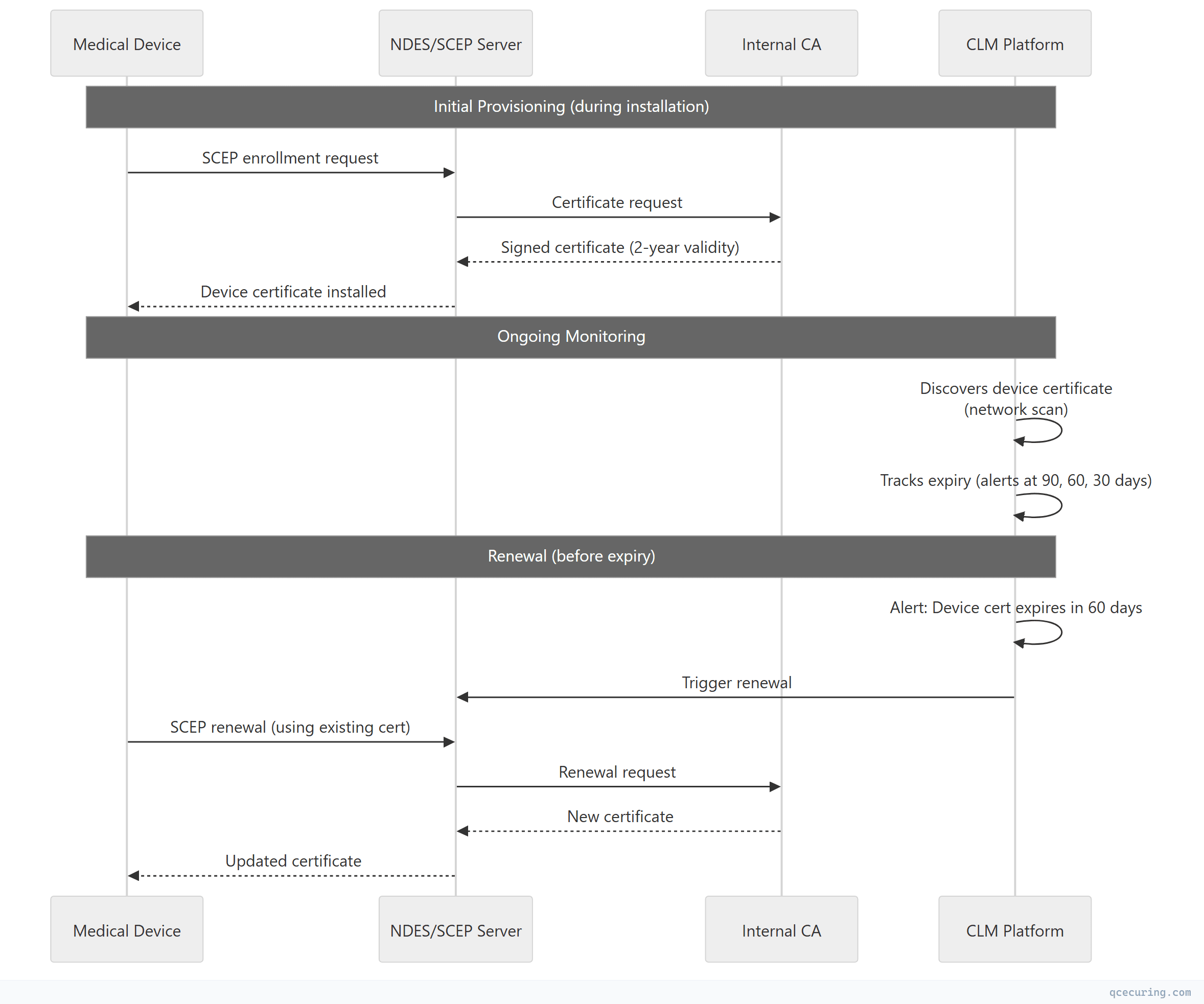

Device Certificate Lifecycle

EHR System Integration

Epic Certificate Requirements

Epic systems use certificates for:

• MyChart patient portal (public TLS)
• Interconnect web services (mTLS between Epic instances)
• Care Everywhere health information exchange (mTLS)
• FHIR APIs (OAuth 2.0 + TLS)
• Hyperspace client connections (internal TLS)

Common Epic certificate issues:

• Interconnect certificates expire and break Care Everywhere connections
• MyChart certificate renewal requires coordination with Epic hosting
• FHIR API certificates need SANs for multiple endpoint URLs

HL7 FHIR API Security

# FHIR server TLS requirements
tls:
  version: "1.2+"
  client_auth: "required"  # mTLS for system-to-system
  certificate:
    key_type: "ECDSA P-256"
    validity: "1 year"
    san:
      - "fhir.hospital.org"
      - "api.hospital.org"
    eku:
      - "serverAuth"
      - "clientAuth"  # For bidirectional FHIR exchange

Selecting a CLM Platform for Healthcare

Must-Have Features

Evaluation Criteria

# Network-based certificate discovery across all VLANs
# Scan clinical network (10.10.0.0/16)
# Scan administrative network (10.20.0.0/16)
# Scan DMZ (192.168.1.0/24)
# Scan medical device VLAN (10.30.0.0/16)

# Expected findings:
# - Certificates you knew about (patient portal, EHR)
# - Certificates you forgot about (old test servers, vendor appliances)
# - Expired certificates still in use (medical devices, printers)
# - Self-signed certificates that should be CA-issued
