Fix 'RPC Server is Unavailable' in AD CS & PKI Environments

You’re seeing this when trying to enroll a certificate, access the CA, or during auto-enrollment:

The RPC server is unavailable. 0x800706ba (WIN32: 1722 RPC_S_SERVER_UNAVAILABLE)

CertEnroll::CX509Enrollment::Enroll: The RPC server is unavailable. 0x800706ba

certutil -ping: The RPC server is unavailable.

Auto-enrollment failed. The RPC server is unavailable.

Certificate enrollment is broken. Users can’t get certificates, auto-enrollment is failing, and services depending on certificates are degrading. Here’s how to fix it.

Fastest Fix: Identify the Broken Link

Run these three commands from the client experiencing the error:

# 1. Can you reach the CA at all?
certutil -ping -config "CA-SERVER\CA-Name"

# 2. Is the RPC port open?
Test-NetConnection -ComputerName CA-SERVER -Port 135

# 3. Can you resolve the CA hostname?
Resolve-DnsName CA-SERVER

Interpret the results:

• DNS fails → Jump to DNS Fix
• Port 135 blocked → Jump to Firewall Fix
• Port 135 open but certutil -ping fails → Jump to CA Service Fix
• Everything works from server but not from client → Jump to DCOM Permissions

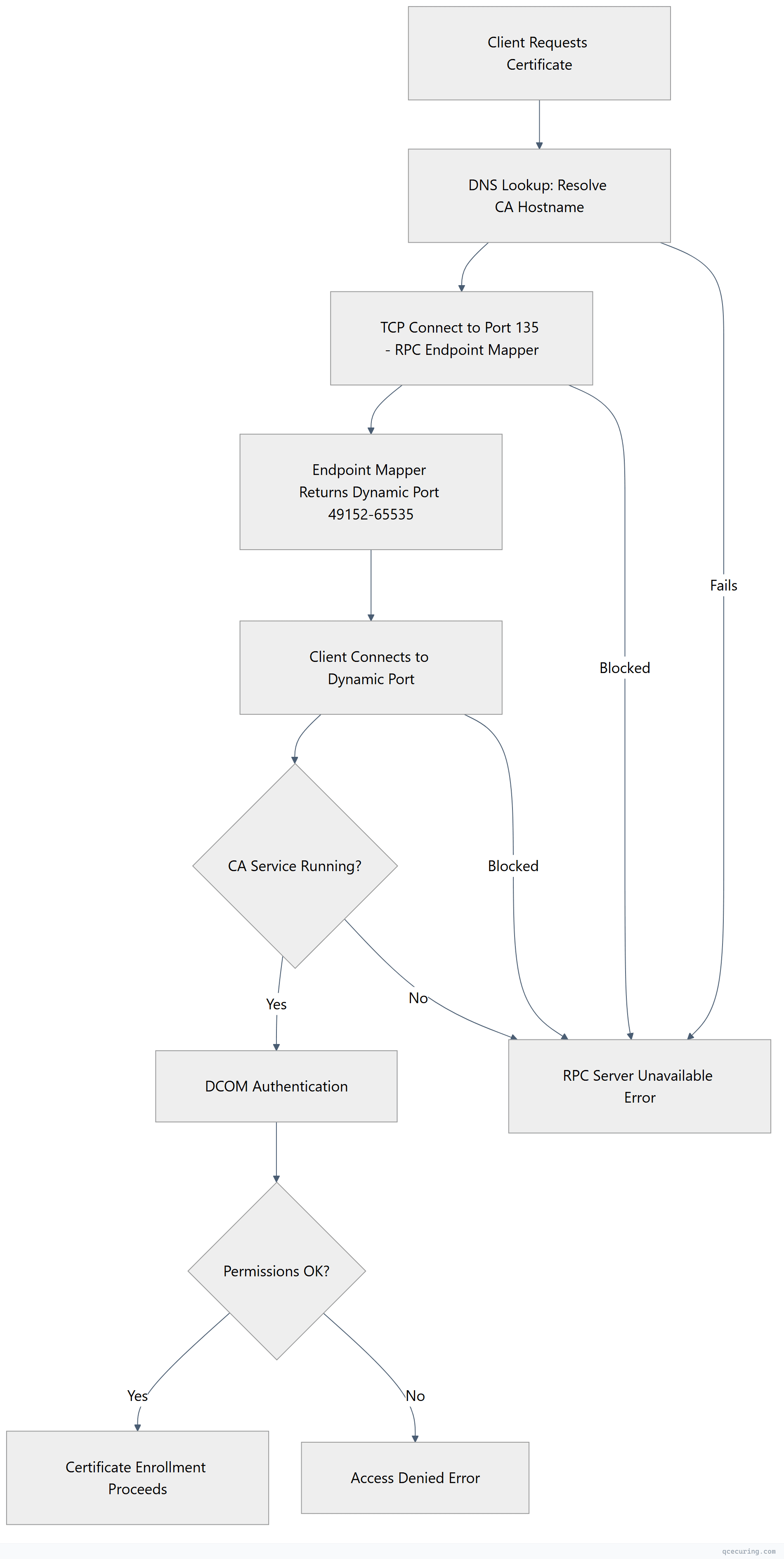

RPC Communication Flow in AD CS

Cause 1: CA Service Stopped or Crashed

What’s happening: The Active Directory Certificate Services service (CertSvc) isn’t running on the CA server.

Diagnose — on the CA server:

# Check service status
Get-Service CertSvc

# Check if the service crashed recently
Get-WinEvent -LogName Application -FilterXPath "*[System[Provider[@Name='Microsoft-Windows-CertificationAuthority']]]" -MaxEvents 10

Fix — restart the CA service:

# Start the service
Start-Service CertSvc

# If it won't start, check the event log for the reason
Get-WinEvent -LogName Application -MaxEvents 20 | Where-Object { $_.ProviderName -like "*Cert*" } | Format-List TimeCreated, Message

# Common fix: CA certificate expired — check it
certutil -ca.cert | findstr "NotAfter"

If the CA certificate itself has expired:

# Renew the CA certificate
certutil -renewCert ReuseKeys

# Then restart
Restart-Service CertSvc

Set the service to auto-start:

Set-Service CertSvc -StartupType Automatic

Cause 2: Firewall Blocking RPC Ports

What’s happening: RPC requires port 135 (endpoint mapper) PLUS a dynamic port range (49152-65535). If either is blocked, enrollment fails.

Diagnose — from the client:

# Test RPC endpoint mapper
Test-NetConnection -ComputerName CA-SERVER -Port 135

# Test a sample of dynamic ports
Test-NetConnection -ComputerName CA-SERVER -Port 49152
Test-NetConnection -ComputerName CA-SERVER -Port 49153

# Full port scan of RPC range (takes time)
1..20 | ForEach-Object { Test-NetConnection -ComputerName CA-SERVER -Port (49152 + $_) -WarningAction SilentlyContinue } | Where-Object { $_.TcpTestSucceeded }

Fix — open required firewall ports on the CA server:

# Allow RPC endpoint mapper
New-NetFirewallRule -DisplayName "AD CS - RPC Endpoint Mapper" -Direction Inbound -Protocol TCP -LocalPort 135 -Action Allow

# Allow RPC dynamic ports
New-NetFirewallRule -DisplayName "AD CS - RPC Dynamic Ports" -Direction Inbound -Protocol TCP -LocalPort 49152-65535 -Action Allow

# Or allow the CertSvc program directly (more restrictive)
New-NetFirewallRule -DisplayName "AD CS - Certificate Services" -Direction Inbound -Program "%SystemRoot%\System32\certsrv.exe" -Action Allow

Better fix — restrict the dynamic port range:

# On the CA server, restrict RPC to a smaller range
netsh int ipv4 set dynamicport tcp start=49152 num=1000

# Then only open 49152-50152 in the firewall
New-NetFirewallRule -DisplayName "AD CS - RPC Dynamic (Restricted)" -Direction Inbound -Protocol TCP -LocalPort 49152-50152 -Action Allow

If there’s a network firewall between client and CA:

Required ports (client → CA):
- TCP 135 (RPC Endpoint Mapper)
- TCP 49152-65535 (RPC Dynamic) — or your restricted range
- TCP 443 (if using Web Enrollment / CES)
- TCP 80 (if using CRL/AIA HTTP distribution)

Cause 3: DNS Resolution Failure

What’s happening: The client can’t resolve the CA server’s hostname, so RPC can’t connect.

Diagnose:

# Check if the CA hostname resolves
Resolve-DnsName CA-SERVER
Resolve-DnsName CA-SERVER.domain.local

# Check what CA config the client is using
certutil -config - -ping
# This shows the CA config string: \\SERVER\CA-Name

# Verify the FQDN resolves
nslookup CA-SERVER.domain.local

Fix — DNS registration:

# On the CA server, re-register DNS
ipconfig /registerdns

# On the client, flush DNS cache
ipconfig /flushdns

# If using a CNAME or alias, verify it resolves to the correct IP
Resolve-DnsName CA-SERVER.domain.local | Select-Object Name, IPAddress

Fix — if the CA moved to a new IP:

# Update DNS A record (on DNS server or via DNS Manager)
Add-DnsServerResourceRecordA -Name "CA-SERVER" -ZoneName "domain.local" -IPv4Address "10.0.1.50"

# Remove stale record
Remove-DnsServerResourceRecord -Name "CA-SERVER" -ZoneName "domain.local" -RRType A -RecordData "10.0.1.25"

Fix — if clients are in a different DNS zone:

# Add a conditional forwarder or stub zone
Add-DnsServerConditionalForwarderZone -Name "pki.domain.local" -MasterServers 10.0.1.10

Cause 4: CA Certificate Expired

What’s happening: The CA’s own signing certificate has expired. The service may still be running but can’t process requests.

Diagnose — on the CA server:

# Check CA certificate validity
certutil -ca.cert | findstr "NotBefore NotAfter"

# Or view the full CA cert
certutil -ca.cert

# Check CA status
certutil -CAInfo

Fix — renew the CA certificate:

# For an Enterprise CA (uses same key pair)
certutil -renewCert ReuseKeys

# For a Standalone Root CA
certutil -renewCert ReuseKeys

# Restart the service after renewal
Restart-Service CertSvc

# Publish the new CA cert to AD (Enterprise CA)
certutil -dspublish -f "C:\Windows\System32\CertSrv\CertEnroll\CA-Name.crt" RootCA

Distribute the renewed CA certificate:

# Publish to AD for domain-joined clients (auto-distributed via GPO)
certutil -dspublish -f NewCACert.crt RootCA

# Force Group Policy update on clients
gpupdate /force

# Verify clients have the new CA cert
certutil -store Root | findstr "NotAfter"

Cause 5: DCOM Permissions Misconfigured

What’s happening: The client’s computer account or user doesn’t have DCOM activation/launch permissions on the CA server.

Diagnose — on the CA server:

# Check DCOM errors in the System event log
Get-WinEvent -LogName System -FilterXPath "*[System[Provider[@Name='Microsoft-Windows-DistributedCOM'] and (EventID=10016)]]" -MaxEvents 5 | Format-List TimeCreated, Message

Fix — grant DCOM permissions:

1. On the CA server, open dcomcnfg (Component Services)
2. Navigate to: Component Services → Computers → My Computer → DCOM Config
3. Find CertSrv Request (or the CA’s DCOM application)
4. Right-click → Properties → Security tab
5. Under Launch and Activation Permissions, click Edit
6. Add Authenticated Users or the specific group with Local Launch and Local Activation

PowerShell alternative — check and fix CertSrv permissions:

# Verify CA security settings
certutil -getreg CA\Security

# Check who has enrollment permissions
certutil -getreg CA\Officer

# Reset CA security to defaults (use with caution)
certutil -setreg CA\Security "D:(A;;RPWPCR;;;AU)(A;;RPWPCR;;;DA)"
Restart-Service CertSvc

Cause 6: Network Issues (VPN, Routing, MTU)

What’s happening: RPC is sensitive to network quality. VPN tunnels, MTU mismatches, and routing issues can break RPC even when basic connectivity works.

Diagnose:

# Test with larger packets (RPC uses large payloads)
ping CA-SERVER -l 1400 -f

# If this fails with "Packet needs to be fragmented but DF set"
# you have an MTU issue

# Trace the route
tracert CA-SERVER

# Check for packet loss
pathping CA-SERVER

Fix — MTU issues:

# On the client, reduce MTU on the VPN interface
netsh interface ipv4 set subinterface "VPN Connection" mtu=1400 store=persistent

Fix — verify routing:

# Ensure traffic to CA goes through the correct interface
route print | findstr "10.0.1"

# Add a static route if needed
route add 10.0.1.0 mask 255.255.255.0 10.0.0.1 -p

# Test CA connectivity
certutil -ping -config "CA-SERVER\CA-Name"

# Test enrollment (request a test certificate)
certreq -new request.inf request.req
certreq -submit -config "CA-SERVER\CA-Name" request.req

# Trigger auto-enrollment
certutil -pulse

# Check auto-enrollment event log
Get-WinEvent -LogName "Application" -FilterXPath "*[System[Provider[@Name='Microsoft-Windows-CertificateServicesClient-AutoEnrollment']]]" -MaxEvents 5

[NewRequest]
Subject = "CN=Test Certificate"
KeyLength = 2048
Exportable = TRUE
MachineKeySet = TRUE
RequestType = PKCS10

[RequestAttributes]
CertificateTemplate = Computer

$CAServer = "CA-SERVER"
$CAName = "Your-CA-Name"
$CAConfig = "$CAServer\$CAName"

Write-Host "=== RPC/PKI Connectivity Diagnostic ===" -ForegroundColor Cyan

# DNS
Write-Host "`n[1] DNS Resolution:" -ForegroundColor Yellow
try {
    $dns = Resolve-DnsName $CAServer -ErrorAction Stop
    Write-Host "  OK: $CAServer resolves to $($dns.IPAddress)" -ForegroundColor Green
} catch {
    Write-Host "  FAIL: Cannot resolve $CAServer" -ForegroundColor Red
}

# Port 135
Write-Host "`n[2] RPC Endpoint Mapper (Port 135):" -ForegroundColor Yellow
$tcp = Test-NetConnection -ComputerName $CAServer -Port 135 -WarningAction SilentlyContinue
if ($tcp.TcpTestSucceeded) {
    Write-Host "  OK: Port 135 is open" -ForegroundColor Green
} else {
    Write-Host "  FAIL: Port 135 is blocked" -ForegroundColor Red
}

# Dynamic ports
Write-Host "`n[3] RPC Dynamic Ports (sample):" -ForegroundColor Yellow
$openPorts = 0
49152, 49153, 49154, 49155, 49156 | ForEach-Object {
    $t = Test-NetConnection -ComputerName $CAServer -Port $_ -WarningAction SilentlyContinue
    if ($t.TcpTestSucceeded) { $openPorts++ }
}
if ($openPorts -gt 0) {
    Write-Host "  OK: $openPorts/5 dynamic ports responding" -ForegroundColor Green
} else {
    Write-Host "  FAIL: No dynamic ports responding (firewall?)" -ForegroundColor Red
}

# CertUtil ping
Write-Host "`n[4] CA Service (certutil -ping):" -ForegroundColor Yellow
$pingResult = certutil -ping -config $CAConfig 2>&1
if ($pingResult -match "successfully") {
    Write-Host "  OK: CA is responding" -ForegroundColor Green
} else {
    Write-Host "  FAIL: $pingResult" -ForegroundColor Red
}

Write-Host "`n=== Diagnostic Complete ===" -ForegroundColor Cyan
